Hydrogen Fracturing Technology Overview Chart

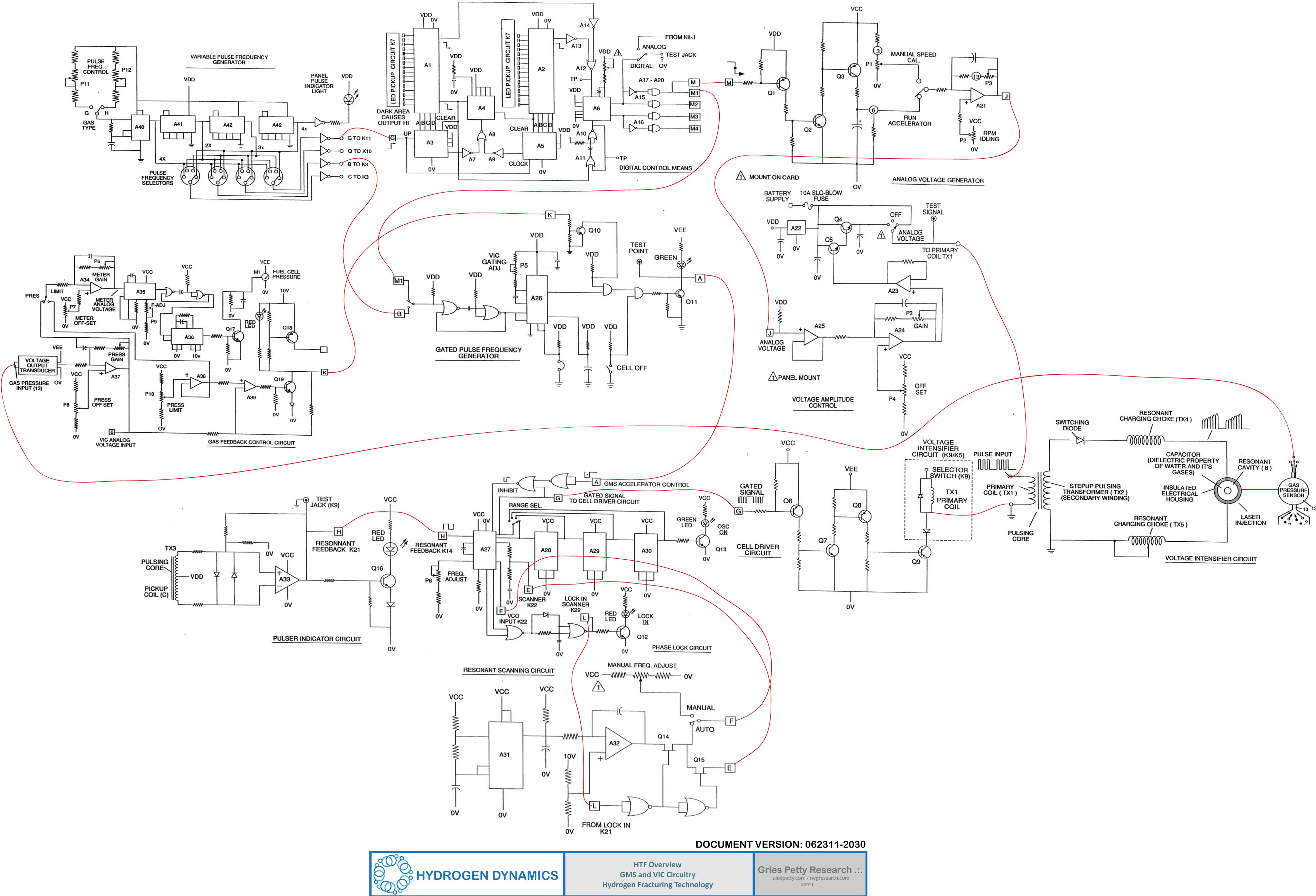

The large image below contains a view of the connections between the various elements of Meyer’s Hydrogen Fracturing technology.

You may need to use your browsers “zoom-out” function to see the whole chart. Alternatively you can click on the image to load it in a more manageable way.

Hydrogen Fracturing Technology Overview Chart

Mappings Between Meyer’s Hydrogen GMS Cards and Patent Schematics Simple WFC Energization Circuit Stan Meyer Water as Fuel Lecture in Denver on May 1997
